2.- PROJECT EVALUATION

RISK ASSESSMENT FOR OIL AND GAS PROJECT

Risk assessment can be used in many ways. In oil and gas construction activity focus about the safety risk assessment , which in general is qualitative. For the project management it can be used in cost estimation to define the contingency. There are many softwares that are based on Monte-Carlo simulation, the best one is the Crystal-ball software.

Exploration Risk :

– Existence of Hydrocarbons

– Magnitude of Discovery

– Type of Hydrocarbon

Development Risk :

– Technical Risk

– Reservoir Development

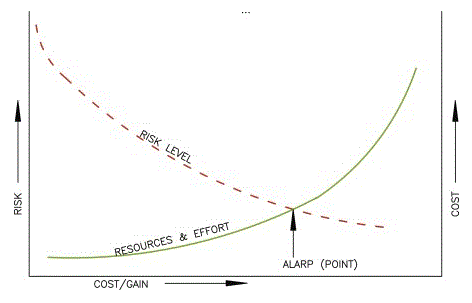

The ALARP principle - as low as reasonably practicable

The ALARP principle is sometimes used in the oil and gas industry . The use of the ALARP principle may be interpreted as, satisfying a requirement to keep the risk level “as low as possible” provided that the ALARP evaluations are extensively documented. In the ALARP region (between “lower tolerable limit” and “upper tolerable limit”), the risk is tolerable, only if risk reduction is impracticable or if its cost is grossly disproportionate to the improvement gained. The common way to determine what is practicable is to use cost–benefit evaluations as a basis for the decision on whether certain risk reducing measures should be implemented. A risk may not be justified in any ordinary circumstance, if it is higher than the “upper tolerable limit.” The “upper tolerable limit” is usually defined, whereas the “lower tolerable limit” may sometimes be left undefined. This will not prohibit effective use of the approach, as it implies that ALARP evaluations of risk reducing measures will always be required. The ALARP principle used for risk acceptance is applicable to risks regarding personnel, the environment, and assets.

Layers of Protection Analysis (LOPA)

Percentil P10, P50, Pmean, P90 :

One technique that the industry uses to understand and quantify distributions of data is percentiles (or cumulative probabilities). This organizes the distribution into increments between 0 and 100. For example, the 10th percentile or P10 number say 10 percent of my wells will have a value “less than or equal to” my P10 value. The location of percentiles on a typical lognormal distribution would look something like:

Comparing to the P10, which could potentially give estimates that are over-optimistic, and the P90, a conservative estimate which could potentially leave too much oil, both providing confusing future trends. It is a common misunderstanding that the P50 is a synonym of P mean. This will be true is the probability distribution function for the observations were symmetrical. In this case, the mode, P mean and P50 would all be the same.

CAPEX : Capital expenditures are major purchases a company makes that are designed to be used over the long-term.

- Platform : Services + Materials + Logistic

- Well : Drilling Cost ( Services + Tangibles)

- Facilities : Lines + Tanks + Separators

OPEX : Operating expenses are the day-to-day expenses a company incurs to keep their business operational.

- Rent and utilities

- Wages and salaries

- Accounting and legal fees

- Royalties

- Property taxes

- Business travel

Lifting Cost = OPEX / Production ( $/bbl )

1.- Cash flow (n=0) : CAPEX

2.- Cash flow (n=1) : Oil Price ( PRMS or Portfolio ) x Q ( Oil Production) - OPEX | Year 1

3.- Cash flow (n=2) : Oil Price ( PRMS or Portfolio ) x Q ( Oil Production) - OPEX | Year 2

PETROLEUM RESOURCE MANAGEMENT SYSTEM (PRMS)

In 2000, the American Association of Petroleum Geologists (AAPG), SPE, and the World Petroleum Council (WPC) jointly developed a classification system for all petroleum resources. This was followed by complementary application evaluation guidelines (2001), standards for estimation and Audit of Reserves information (2001, 2007 revised version) and a glossary of terms used in the definitions of resources (2005).

(*) For Oil Production : Require to have database production data in OFM Software for example.

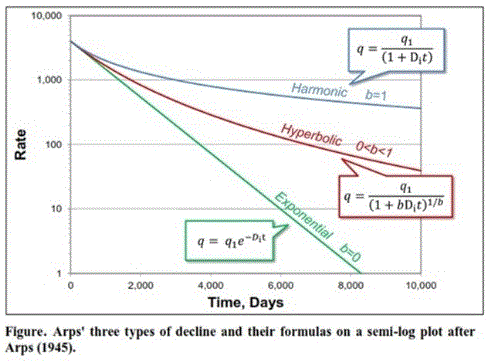

ARPS

Exponential Declination ( b=0) :

Hiperbolic Declination ( 0<b<1) :

Switch Point : change Transient flow to Boundary flow.

EUR : using declination curve : ARPS , Fetkovich, Duong, etc... Depend of reservoirs type.

SPE/WPC/AAPG (2000) :

- Proved >= P90 (1P)

- Probable >= P50 (2P)

- Possible >= P10 (3P)

OOIP & OGIP

· N = OOIP (STB)

· 7758 = conversion factor from acre-ft to bbl

· A = area of reservoir (acres) from map data

· h = height or thickness of pay zone (ft) from log and/or core data

· ø = porosity (decimal) from log and/or core data

· S_w = connate water saturation (decimal) from log and/or core data

· B_oi = formation volume factor for oil at initial conditions (reservoir bbl/STB) from lab data

· G = OGIP(SCF)

· 43560 = conversion factor from acre-ft to ft3

· B_gi = formation volume factor for gas at initial conditions (reservoir ft3/SCF)

· Solution gas : 18 – 25%

· Expansion : 2 – 5%

· Gas cap drive : 20 – 40%

· Water Drive (bottom) : 20 – 40%

· Water Drive (Edge) : 35 – 60%

· Gravity : 50 – 70%

Recovery Oil reserve = OOIP or OGIP x RF

NET PRESENT VALUE (NPV) :

Net Present Value (NPV) is the value of all future cash flows (positive and negative) over the entire life of an investment discounted to the present.

"D" represents the value of the cash flows for each of the exercises, "i" the interest rate expected to be obtained or the rate of return of an investment of risk and similar duration and "n" the number of periods that it is estimated of the operation of the company.
